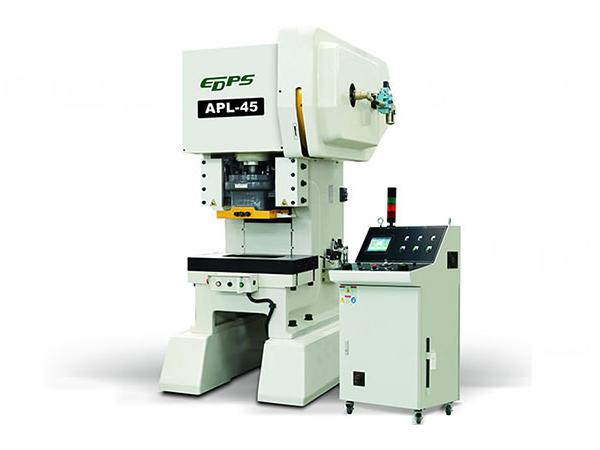

45 Ton Precision Metal Stamping Press, No. APL-45

This product has been discontinued and removed from our shelves.

Product description

45 Ton stamping press can be used to process small electronic components with high precision and large yield, such as communication components, computer components, small components of household appliances, stator, rotor and other small components.

Product features

● The punch machine uses dynamic balance system, increasing the service life of punch machine and die.

● Hydraulic slide uses sticking release device, improving reliability.

● New linkage driving device can improve the precision and stability of punch machine.

Parameters

Name APL-45
Model A B C
Capacity ton 45
Rated tonnage point mm 1.2
Stroke mm 20 30 40
Stroke per minute s,p.m 100-500 100-400 100-300
Die height mm 265 260 255
Bolster area mm 760x450x90
Slide area mm 380x320
Slide adjustment mm 30
Main motor 5.5x4P
Shank hole 50
Bed opening 400x200
lubrication device Forced circular lubrication device

Dimensions

Model A B C D E F G/g H/h I KxJ LxM O T(Wxdxs)
APL-45 2300 1214 225 496 1100 850 1555/400 1747/403 120 18x180 400x180 Φ60x95L 15x5x66

Standard configuration

  • Top stop
  • Variable speed motor
  • Hydraulic clamping device
  • Slide and die counterbalancing device
  • Die height indicator
  • Slide adjusting device
  • Microcomputer control system
  • Operation cabinet at the front of frame
  • Forced circular lubrication device
  • Crankshaft position sensor
  • Miss-feed socket: 2 sets
  • Air supply connector
  • User manual
  • Tool kit

Optional configuration

  • Anti-vibration device
  • Grease lubrication device
  • Bottom dead center sensor
  • Quick die change device
