Parameters

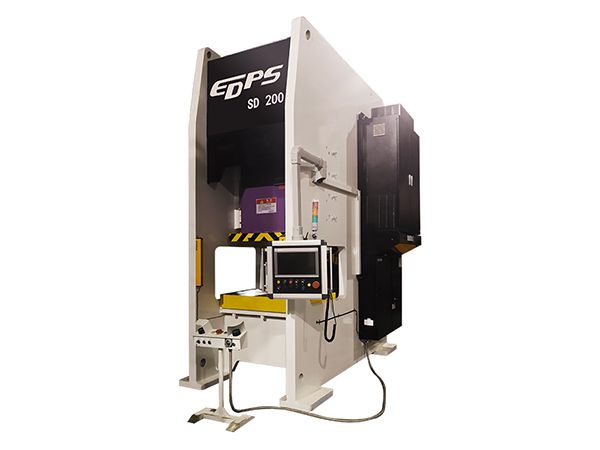

● Item: SD-200

● Nominal force: 200ton

● Rated tonnage point: 6mm

● Stroke length: 200mm

● Max. die height: 460mm

● Slide stroke per minute: 1-60 s.p.m

● Slide adjustment: 100mm

● C-type frame opening: 1000*570mm

● Slide area: 1000*650*90mm

● Bolster area: 1130*840*160mm

● Max. upper die weight: 550kg
