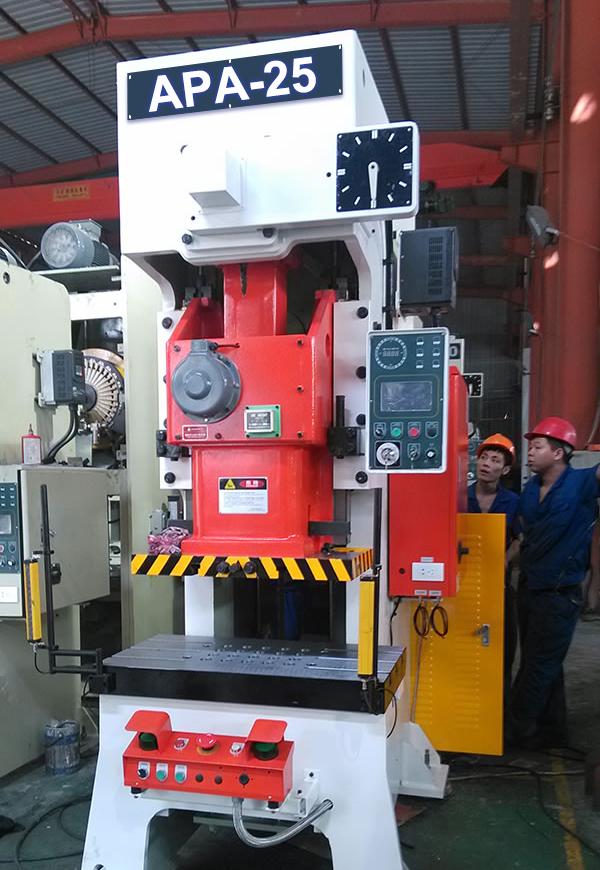

25 Ton Precision Metal Stamping Press, No. APA-25

Product description

Yiduan's 25-Ton precision metal stamping press has a wide application, which is mainly used in sheet metal's cutting, forming and deep drawing for diverse products, such as vehicles, timepiece, home appliance, stationary, hand tool, household hardware, computers and etc.

Product features

● High stiffness for its frame: Quality welded steel plates are adopted as the raw material of 25-ton stamping press's frame. These plates undergo stress relieving, which allows for a high and stable presses precision.

● HPrecision stamping press possesses same center with its driving center, which allows for a stable and precise stamping.

● H Two balancing devices are installed on our 25 –Ton precision stamping press, which allows a relatively stable operation.

● H Allowable tolerance for this press machine is 0.1mm, which enables safe, convenient and reliable operation.

● HAfter hard anodizing, grinding and other machining, our crankshaft, gears, connecting rods and other components all possess high performance in its physical and chemical properties.

● HSince 25-ton precision metal stamping press is equipped with clutch, brake, double solenoid valve (controlling clutch by cutting off or putting through the air supply), overload protector, the safe and precise operation of stamping press's slides is guaranteed.

Parameters

Name Unit APA-25
Model
V type H type
Capacity Ton 25
Rated tonnage point mm 3.2 1.6
Speed changing s.p.m 60-140 130-200
Stable speed s.p.m 110
Stroke mm 60 30
Die height mm 200 215
Slide adjustment mm 50
Slide area mm 300x230x50
Bolster area mm 680X300X70
Shank hole mm 38.1
Main motor kw.p 3.7X4
Slide adjust device HP Manual operation
Air pressure kg/cm2 6
Presses precision
GB(JIS)class1
Presses dimension mm 1280X850X2200
Presses weight Tons 2.1
Die cushion capacity Ton -
Stroke mm -
Die cushion effective area mm2 -

Overall dimension

Specification A B C D E F G H I J K L M N O P Q R
APA-25 1100 840 2135 680 300 470 250 800 260 444 160 980 700 540 1275 278 447 935

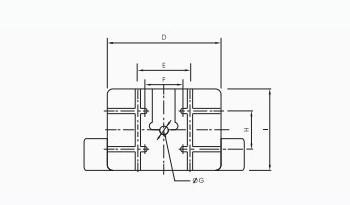

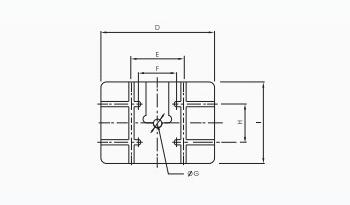

Slide and bolster's parameters

Model A B c D E F G H 1 T- slot
APA-25 240 120 90 300 - 150 Φ 38.1 80 230

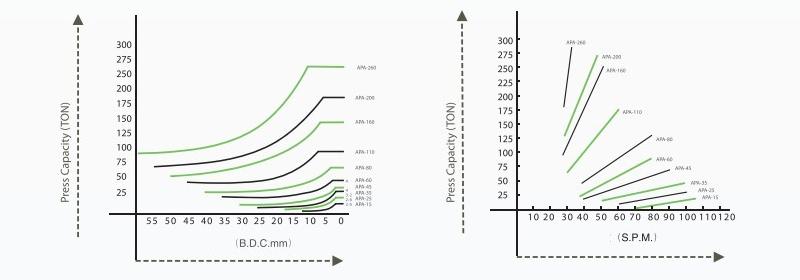

Capacity curve chart

Standard configuration

  • Transducer
  • Hydraulic overload protection system
  • Manual slide adjustment device (below 60 Tons)
  • Digital slide adjustment device(80 Tons or above 80 Tons)
  • Mechanical die height indicator (below 60 Tons)
  • Digital die height indicator (60 Tons or above 60 Tons)
  • Slides and die counterbalancing device
  • Rotary cam switch
  • Misfeed detector
  • Power socket
  • Crankshaft position sensor
  • Counter
  • Air supply connector
  • Die over-run protection device
  • Air blast system
  • Maintenance tools and tool kit
  • Operation manual

Optional configuration

  • Wet clutch
  • Automatic grease lubrication system
  • Hydraulic die cushion
  • Foot switch
  • Quick die change device(die lifter, die clamp, die-roller)
  • Upper slider feeding device
  • Press anti-vibration mounts
  • Light curtain safety device
  • Feeder (air feed, mechanical feeder, NC servo feeder)
  • Die rack
  • Straightening machine
  • Robotic arm
  • Lighting device for dies
  • Touch screen (Preset counter, total count and etc.)
  • PAC100 programmable automation controller
  • Man-machine system
