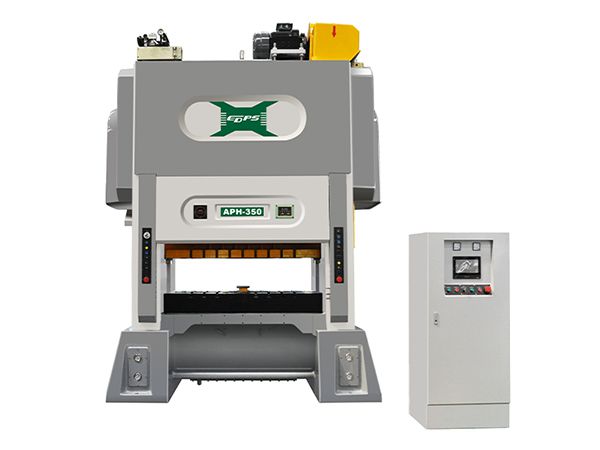

350 Ton Precision Metal Stamping Press, No. APH-350 Mechanical Press, Sheet Metal Working Machinery

Maximum performance, utmost precision and unsurpassed reliability
Designed with high-alloy steel frame, the gantry type precision metal stamping press with 6 posts features high stability and reliability. After eliminating the internal stress, the precision is significantly improved, resulting in extremely low noise and vibration during metal stamping process. This is beneficial to increasing the durability of stamping dies.

Parameters

Item Unit Model APH-350
Capacity ton 350
Stroke mm 30
Strokes per minute s.p.m 150-400
Bolster area mm 2400x1000
Bolster opening mm 2200x300
Slide area mm 2400x900
Die height adjustment mm 400-450
Motor for die height adjustment kW 2.2
Feeding height mm 210±50
Main motor kW 55

Standard configurations

  • Electric die height adjustment device
  • Digital die height indicator (0.01mm)
  • Micro-inching function
  • rocess parameters of 30 die sets stored in the computer
  • Misfeed sensors
  • wo way rotation in main motor control
  • ydraulic clamping unit for adjusting die height
  • ubricant cooling device
  • taly OMPI combined clutch/brake unit
  • Independent electric control box
  • Tool box
  • Work light
  • Inverter control for main motor

Optional configuration

  • Die height detector
  • Hydraulic die clamping system
  • Hydraulic die lifter
  • High speed feeder (gear change type)
  • Double head uncoiler
  • Leveler (S loop control)
  • Anti-vibration mounts
  • F-3SC stamping controller
  • Two side soundproof safety door
