Features
● High level of automation results in high production efficiency and lowered labor cost.
● Two balancers are symmetrically placed to ensure machine stability during running.
● 6-level slide stroke is available to adapt to different die height.
● Economical production of mass-produces parts with high strength
● Dynamic mass balancing of the slide for extremely quiet running
● Durable, low wear and reliable
Parameters

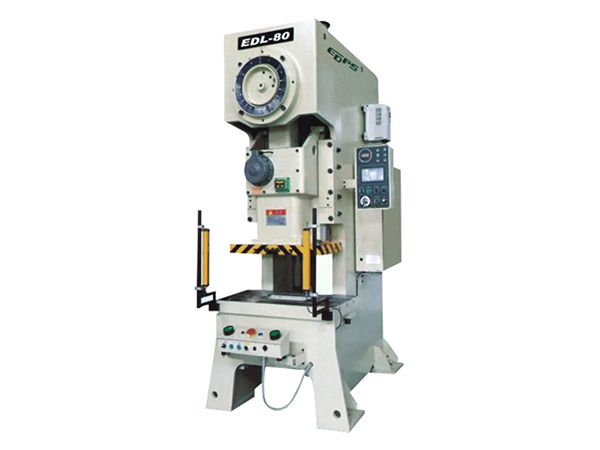

| Item | Unit | EDL-80 |
| Capacity | ton | 80 |
| Rated tonnage point | mm | 4 |
| Strokes per minute at variable speeds | s.p.m | 35-80 |
| Strokes per minute at a constant speed | s.p.m | 65 |
| Stroke | mm | 25-120 |
| Max. die height | mm | 340 |
| Slide adjustment | mm | 80 |
| Slide area | mm | 770x420x70 |
| Bolster area | mm | 1000x550x90 |
| Shank hole | mm | Æ50 |
| Main motor | kW.p | 7.5x4 |
| Slide adjustment mechanism | Electric drive | |
| Air pressure | kg/cm2 | 6 |
| Press precision | GB(JIS), Class 1 | |
| Die cushion capacity | ton | 3.6 |
| Stroke length of die cushion | mm | 70 |
| Effective area of die cushion | mm2 | 450x310 |
Standard configurations
- Inverter
- Hydraulic overload protection system
- Automatic lubrication system
- Electric slide adjustment device
- Electric mold height indicator
- Slide and mold balancing device
- Misfeed sensor
- Power socket
- Rotary cam switch
- Crank angle indicator
- Counter
- Air source connector
- Over-run safety device
- Maintenance tool and tool box
- Operating manual
Optional configuration
- High performance wet clutch & brake
- Pneumatic die cushion
- Foot switch
- Quick die change system
(die lifter, die clamp and die arm) - Die knockout device
- Anti-vibration mount
- Photoelectric safety device
- Feeder
- Uncoiler
- Straightener
- Manipulator
- Die light
- HMI Touch screen
- PAC100 control system
