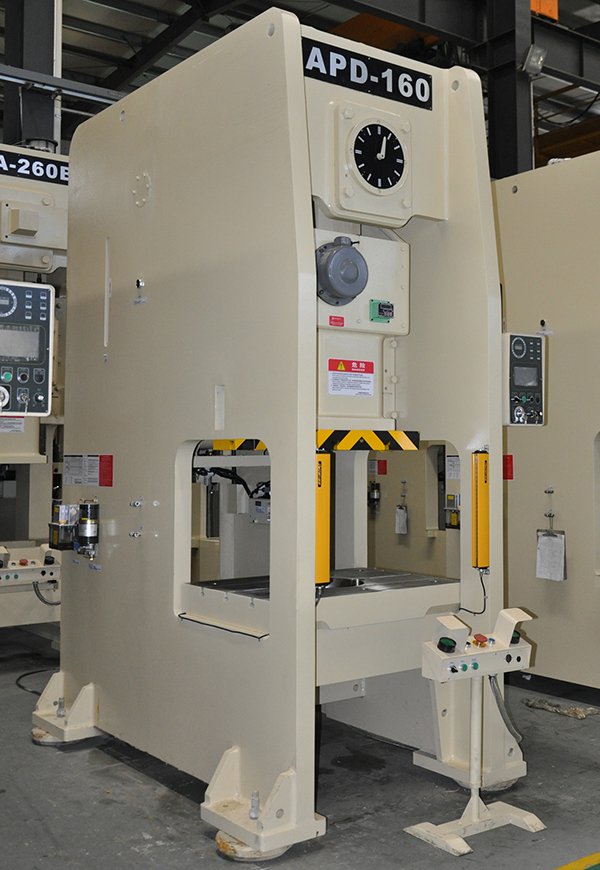

160 Ton Precision Metal Stamping Press, No. APD-160

Product description

APD series 160-ton precision metal stamping press has a high precision of 0.1mm, and it features easy operation and reliable performance. Meanwhile, it adopts semi-closed structure, which contributes to high stamping stability. Meanwhile, semi-closed structure also helps to prevent C-shape opening and low stamping precision caused by long-period stamping. Therefore, the stamping press is widely used in diverse parts' stamping and forming, such as electronic tools, communication tools, computer parts, home appliance parts, vehicle components (automobiles, motorcycles and bicycles), hardware tools and etc.

Product features

● High stiffness for its frame: Quality welded steel plates are adopted as the raw material of 160 - ton stamping press's frame. These plates undergo stress relieving, which allows for a high and stable presses precision.

● Precision stamping press possesses same center with its driving center, which allows for a stable and precise stamping.

● Two balancing devices are installed on our 160 Ton precision stamping press, which allows a relatively stable operation.

● Allowable tolerance for this press machine is 0.1mm, which enables safe, convenient and reliable operation.

● After hard anodizing, grinding and other machining, our crankshaft, gears, connecting rods and other components all possess high performance in its physical and chemical properties.

● Since 160-ton precision metal stamping press is equipped with clutch, brake, double solenoid valve (controlling clutch by cutting off or putting through the air supply), overload protector, the safe and precise operation of stamping press's slides is guaranteed.

Parameters

Name Unit APD-160
Model
V H
Capacity Ton 160
Rated tonnage point mm 6 3
Stroke mm 200 90
Die height mm 460 510
Stroke per minute s.p.m 20-50 40-70
Slide adjustment mm 100

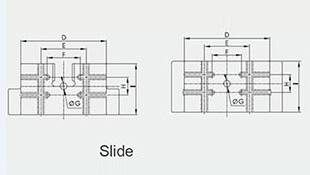

Slide area mm 700X550X90

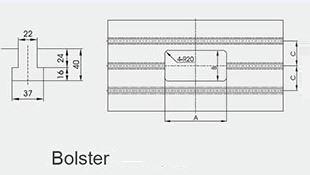

Bolster area mm 980x880x140
Main motor kwxp 15x4
Slide adjust device HP Electrical driving
Air pressure kg/cm2 6
Presses dimension mm 1600x2200x3500
Presses weight Ton 17.8
Presses precision
GB(JIS) class 1
Die cushion capacity Ton 10
Stroke mm 80
Die cushion effective area mm2 650X420

Overall dimension

MODEL A B C D E F G H 1
APD-160 440 220 220 700 300 175 65 220 550

Standard configuration

  • Transducer
  • Hydraulic overload protection system
  • Digital slide adjustment device
  • Mechanical die height indicator
  • Slides and die counterbalancing device
  • Misfeed detector
  • Power socket
  • Rotary cam switch
  • Crankshaft position sensor
  • Counter
  • Air supply connector
  • Die over-run protection device
  • Maintenance tools and tool kit
  • Operation manual

Optional configuration

  • Automatic grease lubrication system
  • Hydraulic die cushion
  • Preset counter
  • Precut counter
  • Foot switch
  • Rapid die change device (die lifter, die clamp, mold shift arm)
  • Upper slide feeding device
  • Press anti-vibration mounts
  • Light curtain safety device
  • Feeder (air feed, mechanical feeder, NC servo feeder)
  • Die rack
  • Straightening machine
  • Robotic arm
  • Lighting device for dies
  • Left (right) feeder
  • PAC 100 programmable automation controller
  • Man-machine system
